Corner Window Measurement

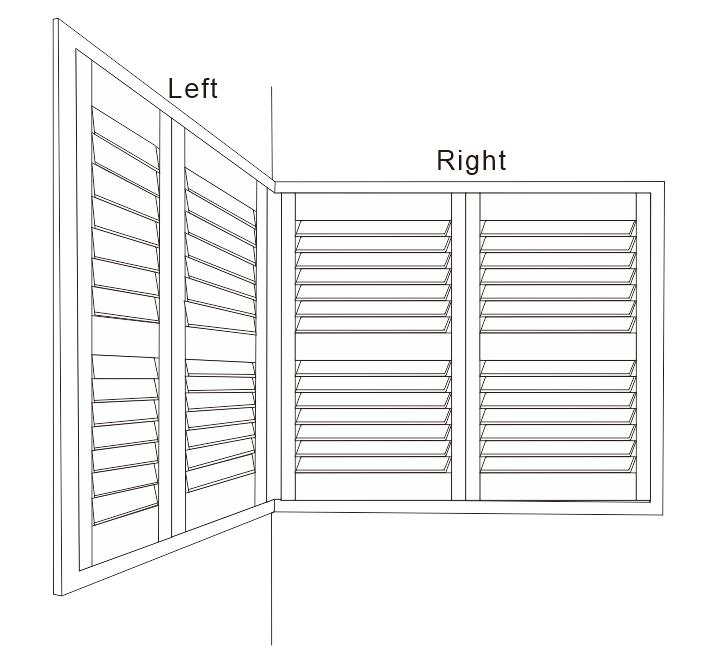

4. Corner Window

4.1 Before the measuring

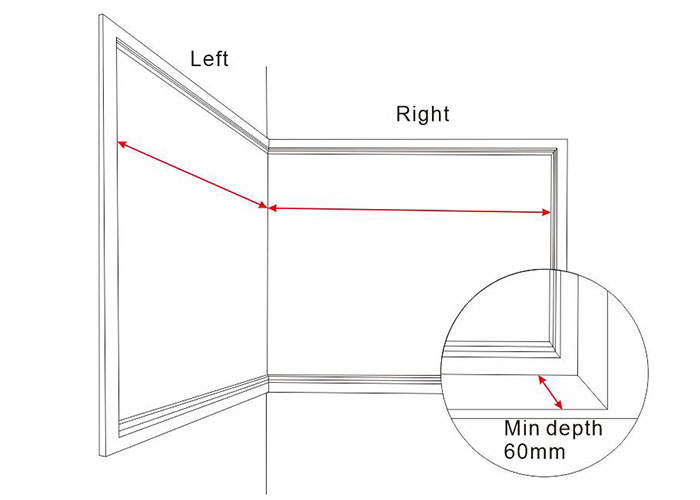

Please check that you have a minimum recess depth of 60 mm on your windows. If you have obstructions, check the depth is 60 mm from the obstruction out to the edge of your window recess.

The following measurement will base on the Recess L frame (Inside), if you have any questions, please do not hesitate to contact our shutter expert. When you complete the measurement, don’t forget the frame option, 4 sides or 3sides.

4.2 Check your Corner

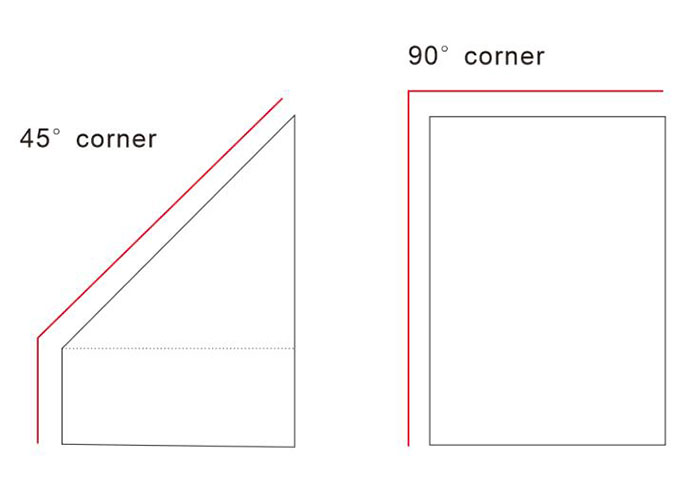

Check that the angle in your corner window is 45 degrees or 90 degrees. When you order you'll leave the corner degree in note. If you're not sure, please contact us.

To check 45 degrees angle:You can grab a notebook or paper. Place the notebook or paper into the corner of your window. If both sides are flush with your window then your angle is 45 degrees.

To check 90 degrees angle: You can hold up a notebook or paper into the corner of your window and if the notebook or paper fits closely you have a 90 degree corner.

4.3 Measure the widths

Measure the inside width of your recess for your

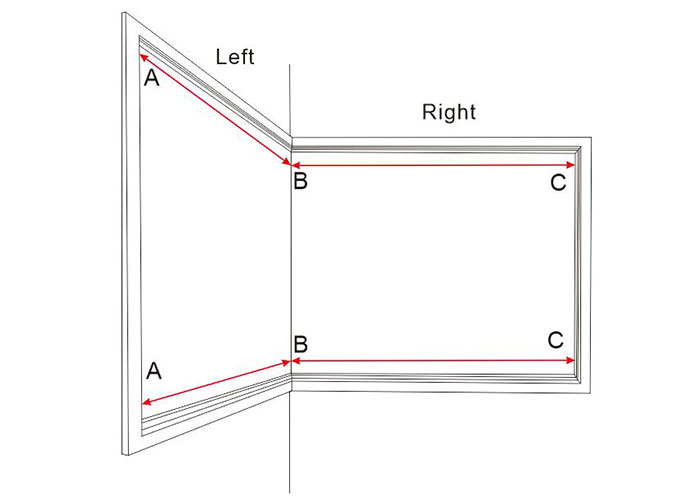

Left Window: Start inside and on the very edge of the top left hand recess (Point A), measure to the top middle corner (Point B), then do it again. Measure the distance between the bottom left hand recess (Point A) to the bottom middle corner (Point B). Please record the smaller data.

Right Window: Start inside and on the very edge of the top middle corner (Point B), measure to the top right hand recess (Point C), then do it again. Measure the distance between the bottom middle corner (Point B) to the bottom right hand recess (Point C). Please record the smaller data.

Don’t make any deductions for your corner post as we’ll do it for you so that you get a perfect fit. If you're not sure, please contact us.

4.4 Measure the Heights

Please measure the inside heights of your recess left and right windows.

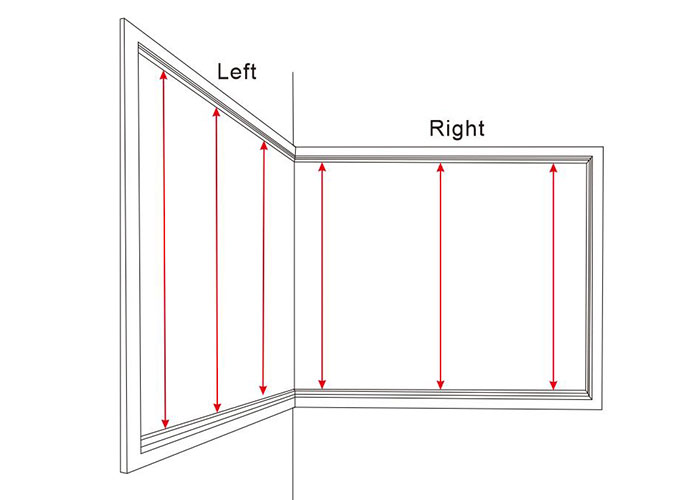

Take measurements from top to bottom on the left, in the middle and on the right for each window. Please record the smaller data.

4.5 Measure the midrail positions

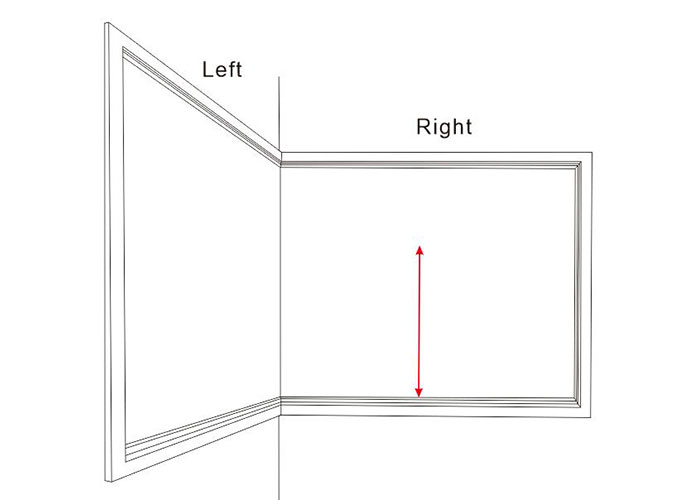

Start from the bottom inside edge of your recess to the mid-point of where you’d like the midrail to sit. If you're not sure, please contact us. When you order online, the midrail position(s) will be the same for each panel in the corner window.

4.6 Measure for your T posts (3 or more panels per window)

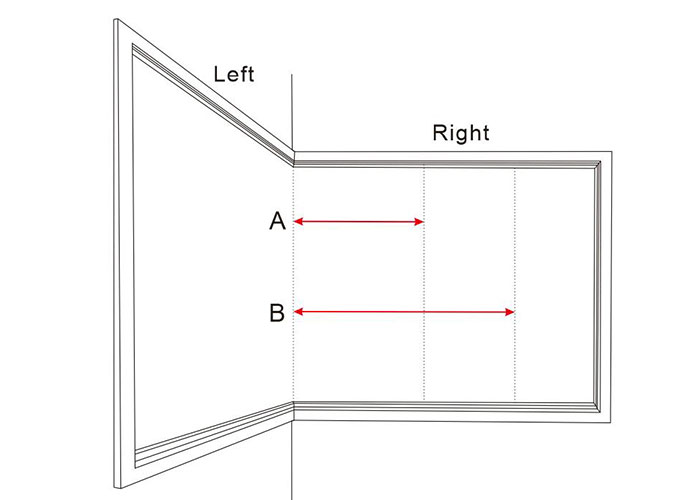

If your left or right window with 3 or more shutter panels, you will need to measure for your T Post(s). Start from the left inside edge or corner across to the middle point where you’d like the T Post to sit. If you have another T Post, start from the left edge or corner again. If you're not sure, please contact us.
